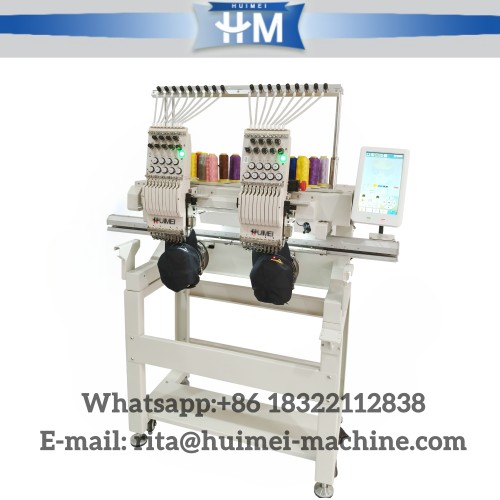

Commercial two head embroidery machine can be considered "small-scale production tools," achieving a good balance between production efficiency and flexibility, making them ideal for small-batch customization.
Compared to single head machines, they double the work efficiency, have lower unit hourly costs, and offer better precision consistency through servo dual-head synchronization.
Compared to multi-head machines, two head embroidery machines require less investment, do not waste capacity (small orders are not idle), have a small footprint, low energy consumption, allow for easy style changes, fast sampling, simple maintenance, quick start-up, low noise, and low requirements for production space. In short, two head embroidery machines are suitable for manufacturers with small-batch orders and flexible styles.
| Commercial two head embroidery machine data sheets | |
| Head number/needle number | 2 head with 9,12 or 15 needles |
| Embroidery area | 400*300mm, 500*400mm, 800*500mm |
| Cap embroidery area | 270*60mm |
| Embroidery speed | recommend max 1000 RPM |
| Screen | 10.1 inch touch screen with 21 languages |
| Memory Capacity | 100 millions stitches (stitch range: 0.1-12.7mm) or 800 patterns with DST, DSB,ZSK,EMB format |
| Voltage/power | 110-240 V/ 400W |
High intelligence is another undeniable advantage of commercial two head embroidery machine:
1. Control System
A. 10-inch high-definition LCD touchscreen, multi-language system, graphical interface, easy for workers to operate.
B. Raynen (standard) or Dahao (optional) system, servo spindle, high-speed CPU, fast response, high embroidery speed, up to thousands of stitches per minute.
C. Powerful storage function, capable of storing 100 million stitches or 800 patterns, convenient for retrieving previous patterns or serving more customers.
2. Automatic Functions
A. Automatic color changing: With 9/12/15 needle configurations, the two head embroidery machine can automatically change embroidery colors without stopping, depending on the pattern settings.
B. Automatic thread cutting, automatic thread reeling, and automatic thread breakage detection. Immediate stop and alarm upon thread or needle breakage.
C. Power failure protection + power failure continuation: After power is restored, it resumes from the point of interruption without failure.
D. Intelligent repair embroidery.
